myFanimation - AC Motor - BN
Image may not reflect selected features

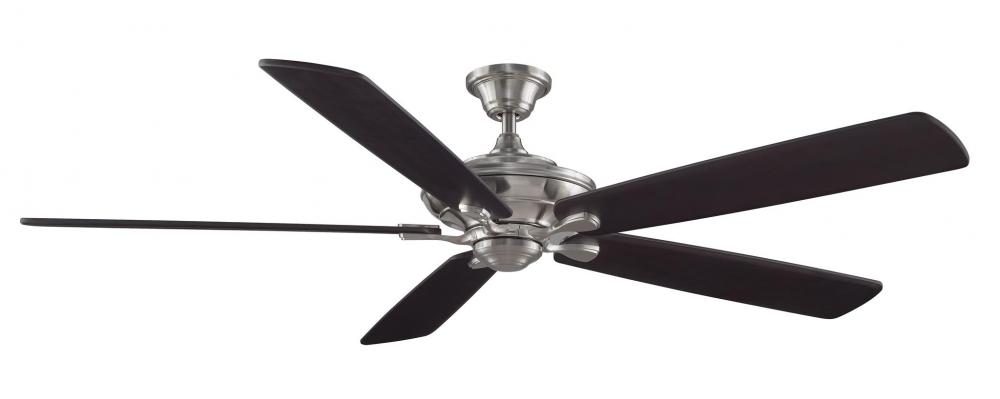

myFanimation - AC Motor - BN (6Y9LE)
The myFanimation mix-and-match offering puts design into the hands of customers as you select a motor, blades, fitters and glass to build your own fan. The fan includes Fanimation's latest innovations such as Hang Right and Fan Shield, which help to minimize vibration and eliminate noise, respectively. The design also brilliantly conceals screws so all eyes can be on your beautiful design. And, with its tri-mount feature, the Distinction fan can be easily installed one of three ways: flush-mount, standard or slope.
Downloads
Product Specification
Item #
6Y9LE
Dimensions
Height: 11.73"
Width: 14.76"
Length: 14.76"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Nickel
Style
Traditional
Option
Energy Star , Damp Rated , Prop 65
Number of Blades
5 Blades
Subfinish
Brushed Nickel
Finish
Brushed Nickel
Option
Energy Star , Prop 65
Family
myFanimation
Voltage
120 V
Air Flow CFM
6235
Air Flow Efficiency
83
Blade Pitch
14
Canopy
6.34 Dia x 2.83 H
Harmonized Codes
8414.51.3000
Light Kit Included
No
Motor Size
188 x 25
Motor Type
AC
Ship Carton Height
11.73
Ship Carton Length
14.76
Ship Carton Width
14.76
Ship Weight
23.49
Sold By
Each
Warranty
Limited Lifetime
Weight
23.5
Airflow Efficiency Low
186
Airflow Efficiency Medium
117
Avg Airflow Efficiency
55
Avg CFM Energy
2810
Avg Energy Use
46
Avg Estimated Yearly Energy Cost
13
Avg Estimated Yearly Energy Cost on HIGH
21
Cap Included
No
Carton Cubic Feet
1.48
Case Height
11.73
Case Length
14.76
Case Quantity
1
Case Weight Pounds
23.49
Case Width
14.76
CEC Uploaded
Yes
Ceiling To Blade Edge
12.78
Ceiling To Bottom (No Light Kit)
14.2
CFM Low
1697
CFM Medium
4036
Country of Origin
China
Current Draw High
0.63
Current Draw Low
0.21
Current Draw Medium
0.42
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
4.5
Energy Star
Yes
Exempt from DOE Procedure
No
Housing Diameter
12.98
Included Control
BTT9R
Included Control Type
Handheld
Leadwire
54
Location Rating
Damp Rated
Max Ceiling Slope
19
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
5
Number Of Speeds
3
Prop 65
Yes
Prop 65 Description
This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Regulated Product
Yes
RPM High
176
RPM Low
47
RPM Medium
109
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 Hz
Watts High
75
Watts Low
9
Watts Medium
35


Other Details:
  • BTT9R Bluetooth hand-held remote included
  • Damp Rated
  • Energy Star rated
  • Optional 54" blades
  • Optional exclusive lighting fitters and light kits
Call for Price
Qty:
BASE PRICE:
$
1117
51
/ / 1
($1117.51 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 243 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
